AWS Achitect 2 - Architecting for Security

April 14, 2020

Acronyms

ACM - AWS Certificate Manager
AZ - Availability Zone
CMK - Customer Master Key
EBS - Elastic Block Store
EC2 - Elastic Cloud Compute
HTTP - Hyper Text Transfer Protocl
IAM - Identity and Access Management
KMS - Key Management Service
MFA - Multi - factor Authentication
NACL - Network Access Control List
OAI - Origin Access Identity
S3 - Simple Storage Service
SSL - Secure Sockets Layer
TLS - Transport Layer Security

Before we set off

About this Article

Hi, this article contains game changing information for those who would like

to get AWS Certified Cloud Architect certified.

It is one of a series of articles.

[Update-2020-04-30]

This is the fifth (5th) article in the series and here are links to all the articles:

[/Update-2020-04-30]

It is an estimated 35 minute read.

This Article is not an Introduction to AWS

This series of articles is not an introduction to AWS or any of the core concepts of the AWS Cloud. You need to be already familiar with some core concepts of AWS Cloud to fully benefit from this article. In order words, if you are not familiar with the AWS cloud, you should read the series of articles beginning at:

What does it mean to architect for security?

First off, what is security?

Security : is the state of being free from danger or threat, also the procedures followed or measures taken to ensure this state.

It makes sense to have our cloud based applications free from danger or threats. This is why security is one of Amazon’s 5 pillars of a well architected system and security involves 6 design principles:

Implement a strong identity foundation.
Enable traceability.
Apply security at all layers.
Automate security best practices.
Protect data in transit and at rest.
Prepare for security events.

The goal of information security is to protect data. This specifically means protecting or ensuring: Confidentiality, Integrity and Availability (CIA) of data.

Confidentiality. Only authorized access to data. Know when un authorized

access happens.

Integrity. Protect data from improper modification. Know when it happens.
Availability. Data can be accessed when needed. Know when data is not

available.

Defence in depth. Apply security controls to every thing that touches the data i.e storage, compute and networking.

Levels of Security

AWS Services - AWS takes care of securing managed services
Operation Systems - Secure OS on your instances
Applications - Secure your apps

Protecting AWS Credentials

Credential Types

Root user - Only one per account, has full access
IAM (non-root) principal - An entity that can perform actions on AWS.

Policies determine what permissions a principal has.

IAM Users

An IAM user is an entity that you create in AWS. The IAM user represents the person or service who uses the IAM user to interact with AWS. A primary use for IAM users is to give people the ability to sign in to the AWS Management Console for interactive tasks and to make programmatic requests to AWS services using the API or CLI.

IAM Groups

An IAM group is a collection of IAM users. You can use groups to specify permissions for a collection of users, which can make those permissions easier to manage for those users. For example, you could have a group called Admins and give that group the types of permissions that administrators typically need. Note that a group is not truly an identity because it cannot be identified as a Principal in a resource-based or trust policy. It is only a way to attach policies to multiple users at one time.

IAM Roles

An IAM role is very similar to a user, in that it is an identity with permission policies that determine what the identity can and cannot do in AWS. However, a role does not have any credentials (password or access keys) associated with it. Instead of being uniquely associated with one person, a role is intended to be assumable by anyone who needs it.

Temporary Credentials

Temporary credentials are primarily used with IAM roles, but there are also other uses. You can request temporary credentials that have a more restricted set of permissions than your standard IAM user. A benefit of temporary credentials is that they expire automatically after a set period of time. You have control over the duration that the credentials are valid.

AWS account is the container that houses resources and billing info amongst others. You log in to that container/account as the root or IAM user.

Enable MFA
Don’t use the root user for administrative tasks.

Policies and Permissions

You create IAM users and grant them permissions. A policy consists of one or more permission statements.

A permission statement comprises:

Effect (allow or deny) - e.g Allow
Service - EC2
Action/operation - e.g RunInstances
Resource (depends on service) - e.g image/ami-e5d9439a
Request condition (MFA, IP range, time etc) - e.g 198.51.100.0/24
There are AWS managed policies. Rather than creating policies from scratch,

start with an AWS managed policies e.g AdministratorAccess whose policy values follow:

Effect: allow
Service: *
Action: *
Resource: *

You could also have a user with AdministratorAccess but apply another

policy which restricts the user from terminating EC2 instances, with the following values:

Effect: deny
Service: EC2
Action: TerminateInstances
Resource: *

Note the deny effect takes precedence over the allow effect.
You can also apply a policy to a group by creating an inline policy for

the group. This is useful when many users require the same permissions.

IAM Console -> Groups -> Click permissions tab -> Click on inline policy

Capturing and Analyzing Logs

You need to have an insight into what is happening as well as keep track of changes that happen to your AWS resources etc. CloudTrail keeps default logs but keeps them for a limited period of time. If you want improved security you follow the outline process:

Configure CloudTrail to capture every event that happens in our environment and

store records of them in log files.

Use CloudWatch to browse and search the events.
Also use CloudWatch alarms to alert us whenever a change takes place.
Search the logs with Athena using SQL queries
Track changes to configuration in AWS environment with AWS Config.

CloudTrail log AWS logs and stores them in S3 buckets. CloudTrail can log:

Management events: All, read-only, write-only, none
Data events: S3, Lamda

For example we can use CloudTrail to monitor all write events.

CloudWatch Logs

Aggregates log files from multiple sources including CloudTrail and other

non-AWS sources.

Provides interface to view and search the logs.

To use CloudWatch logs:

Create a log group
Create an IAM role for CloudTrail to use, which contains.
- Inline service policy that grants CloudTrail permissions to send
logs to CloudWatch logs.
- Trust policy that allows CloudTrail assume the role.
Create CloudWatch alarm to trigger when CloudTrail logs a specific event.

The alarm is not real-time.

Search the logs with Athena using SQL queries
Track changes to configuration in AWS environment with AWS Config.

Tracking changes: CloudTrail vs AWS Config

CloudTrail tracks who made the change, what resource changed and when.

On the other hand, AWS Config tracks what a service configuration looks like at a point in time. For example, you could use it to see what a configuration looked like at some point in the past.

AWS Config

Tracks configuration changes over time.
Records changes in S3
Notifications of changes.

Protecting Network and Host-level Boundaries

Network level boundary - network ACL - applies to subnets.

Host level boundary - security group - applies to EC2 instances.

Application layer - App and Database, S3

Dynamo Db like S3 lives outside the VPC
For dynamo db to reach the internet gateway we need to:
- Modify the main route table for the VPC
```
DynamoDB - internet gateway - route table - NACL - security group - app
```
OR
- Use a VPC endpoint (this gives a non-internet connection).
```
DynamoDB - VPC endpoint - route table - NACL - security group - app
```
When using VPC endpoint, remember to block all outbound internet traffic.

To protect network and host-level boundaries:

Create VPC or use an existing one
Create subnet or use an existing one
Create internet gateway
Attach it to the VPC
Modify default route table to make the subnet public. Add this rule:
- Destination: 0.0.0.0/0, Target=[The internet gateway] e.g igw-CEd23vwMs21022
Reconfigure default security group to allow access SSH and HTTP access only

for our ip address.

Create a policy to allow application access DynamoDB
- IAM -> Policies -> Create Policy
Create a role for the EC2 to assume and which we will attach the policy to.
- IAM - Roles -> Create Policy
- Attach the Policy you created earlier
- The role contains trust policy to allow EC2 instances assumme the role
When we create the IAM role an instance profile will be automatically created

for us. IAM role and instance profile are practically the same.

When we launch an EC2 instance, we:
- Attach the instance profile under the IAM role option.
- Attach the security group we created earlier

Using VPC Endpoints offers more security.

Creating a VPC Endpoint
- VPC Console -> Endpoints -> Click on Create Endpoint
- Select the service by name
- Select the route table (any existing connections will be interrupted)
- A VPC endpoint policy is created for you
Creating a VPC Endpoint should not be done during business hours as

any existing connections will be interrupted.

The VPC endpoint modifies the route table (you selected when creating it)

to add a route with destination having prefix pl- and target having prefix vpce-. pl stands for prefix list which is a list of ip prefixes while vpce stands for VPC Endpoint.

The prefix list could be viewed using the AWS CLI via the command.

aws ec2 describe-prefix-lists

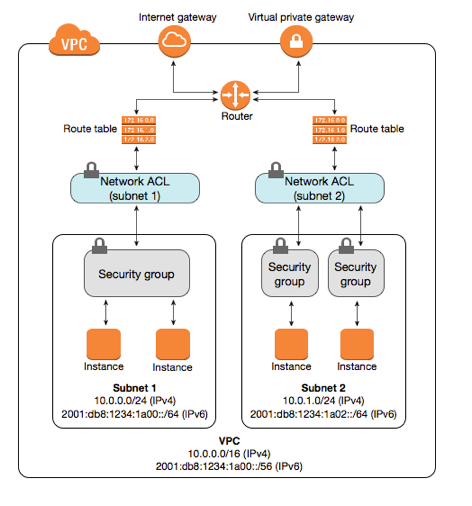

To protect the AWS resources in each subnet, you can use multiple layers of security, including security groups and network access control lists (ACL). For more information, see Internetwork Traffic Privacy in Amazon VPC.

Security Groups

By default, a security group includes an outbound rule that allows all outbound traffic. You can remove the rule and add outbound rules that allow specific outbound traffic only. If your security group has no outbound rules, no outbound traffic originating from your instance is allowed.

Security groups -> Outbound rules
- Remove all outbound rules
- Add custom tcp rule for
Type=HTTPS, Protocol=TCP, Port Range=443, Destination=the prefix list from the VPC Endpoint.
Security groups -> Inbound rules
- Remember if you allow traffic rule from an ip address, the stateful nature
of the security group will allow outbound traffic from the same address.

NACL

You can associate a network ACL with multiple subnets. However, a subnet can be associated with only one network ACL at a time. When you associate a network ACL with a subnet, the previous association is removed.

Every VPC gets a default NACL and the default subnet gets the default NACL.

NACL vs Security Group

TL;DR: Security group is the firewall of EC2 Instances whereas Network ACL is the firewall of the Subnet.

Difference between Security Groups and NACLs

Difference between Security Groups and NACLs. Source: miro.medium.com

Scope: Subnet or EC2 Instance

When you apply an NACL to a subnet, it’s rules apply to all instances in the subnet. On the other hand, security groups have to be applied to each instance. If you have many instances, managing the firewalls using NACL could be very useful

State: Stateful vs Stateless

Security groups are stateful. This means any changes applied to an incoming rule will be automatically applied to the outgoing rule. e.g. If you allow an incoming port 80, the outgoing port 80 will be automatically opened.

Network ACLs are stateless. This means any changes applied to an incoming rule will not be applied to the outgoing rule. e.g. If you allow an incoming port 80, you would also need to apply the rule for outgoing traffic.

Rules: Allow or Deny

Security group support allow rules only (by default all rules are denied). e.g. You cannot deny a certain IP address from establishing a connection.

Network ACL support allow and deny rules. By deny rules, you could explicitly deny a certain IP address to establish a connection example: Block IP address 123.201.57.39 from establishing a connection to an EC2 Instance.

Rules Process order

All rules in a security group are applied whereas rules are applied in their order (the rule with the lower number gets processed first) in Network ACL.i.e. Security groups evaluate all the rules in them before allowing a traffic whereas NACLs do it in the number order, from top to bottom.

Click here for more VPC Security including detailed differences between NACL and security groups

Protecting Data at Rest

Two ways to protect data at rest on AWS are:

Access permissions e.g policies and ACLs
Encryption. Requires acces to a key to encrypt and decrypt the data.

Protecting data at rest tasks include:

Create a Customer Master Key (CMK) key using Key Management Service (KMS)
Encrypt an EBS Volume
Create and use S3 access control lists, bucket polices and user polices
Securely grant anonymous access to S3 objects
Encrypt S3 objects.

A Word on Encryption Keys

Key administrator can manage the key but not use the key. Managing the key

includes making changes to the key and giving other principals (including themselves) permission to use the key.

You can allow principals from another AWS account use the key you create.
AWS keys have policies.
AWS creates default encryption keys for you but you could also create yours.

To Encrypt an existing EBS Volume

Stop the EC2 instance
Take a snapshot of the root volume
Make an encrypted copy of the snapshot
Create an AMI using the encrypted snapshot
Launch another instance using the new AMI

S3 Bucket Policies

Grant access to a particular principal.

Create a bucket policy using the policy generator.
Specify the arn of the user you want to grant access under the Principal option.

Bucket policies are the preferred way to secure bucket objects. However ACLs could be used to grant anonymous access to specific bucket objects.

Grant anonymous access to a specific S3 object. Two ways:

Grant read permissions ot everyone using the particular object’s ACL
Use a bucket policy to grant everyone permission to perform the

GetObject action against the particular object.

Encrypt S3 Objects using a Customer Master Key

When S3 Objects are encrypted with a CMK, principals must be granted

permission to use the CMK before they can decrypt data from the S3 bucket.

To encrypt S3 objects:
- Generate a Customer Master Key
- Enable encryption on the S3 bucket
- Verify that unauthorized users can’t decrypt data from the S3 bucket,
Encrypting s3 objects doesn’t apply to existing objects.
If you want existing objects to be encrypted you have to modify the properties

of each such object to enable encryption.

Before you delete a key you use to encrypt or decrypt data, make sure you

decrypt all data the key has been used to encrypt.

AWS imposes a minimum 7 day waiting period before it deletes a CMK key.

Access S3 Objects through CloudFront

For added security you could access s3 bucket objects only through CloudFront. This could be achieved by granting CloudFront origin access identity to an s3 bucket. This is useful when you want to make s3 bucket objects only avaiable from a cloudfront distribution and not directly from an s3 bucket. To achieve this:

Create an origin access identity (OAI)
Grant OAI read-only access to the bucket
Create a CloudFront distribution which uses the OAI.

Protecting Data in Transit

Standard for encryption over the internet is Transport Layer Security (TLS) TLS is often incorrectly referred to as secure sockets layer (SSL). HTTPS uses TLS. Traffic within the AWS cloud is not encrypted by default.

You could terminate TLS connections on:

Individual EC@ instances - not recommended
Application load balancer - requires at least 2 AZs.

To Encrypt Data in Transit on AWS

Use AWS Certificate Manager (ACM) to generate a TLS certificate. The

certificate for the entire domain e.g *.example.com

The certificate establishes the identity of the domain name.
Create an AWS application load balancer
Configure application load balancer to use TLS by installing the TLS

certificate on the load balancer.

Force all clients through the load balancer by setting up a DNS record for

the domain name pointing to the load balancer.

Configuring Data Backup, Replication and Recovery in S3

Prefer S3 to EBS volumes. You can protect data stored in S3 by using:

Versioning - A new version is created each time you update an object.

Even when you delete an object it is not deleted instantly but marked. To totally delete an object:

Delete the object.
Show object versions
Delete all versions

LifeCycle rules. Lets you move data to different storage classes based on

the age of the object. Lifecycle rules could also be used to delete old objects.

Cross region replication. Not enabled by default.
- By default an S3 bucket is created in only one region and AZ.
- Replication when applied, does not affect existing objects.
- To enable replication:
```
S3 -> Management -> Replication -> Click the `Add Rule` button
```
- If you delete a replicated object in the source region, s3 does not
automatically delete the replicated instance of the object.
